Hardware Options

Choose your Locking System & Handleset

DSA offers a variety of locking systems, handlesets, and hardware accessories for our doors. Below you can get more information on which handlesets are recommended for our doors and which are available for Rated units. For in-depth information on our hardware options, contact your DSA Representative for further information.

Hardware Selections:

Multipoint Locking Systems

Multipoint locks are recommended for doors 8’0″ and taller, to provide additional stability to your door and additional security to your home.

Ashland® Multipoint Lock System

  • Our Ashland® 3-Point Multipoint Lock System features three locking points: two vertical shootbolts and a 1″ deadbolt.
  • To engage the shoot bolts and secure the door in the frame, handle must be pulled up 35°.
  • Locking system is made of stainless steel for superior corrosion resistance.
  • Faceplate extends the full length of the door with 1” top and bottom shoot bolts for security and structural integrity.
  • American Cylinder Above Lever, 3-5/8” Center to Center. Backset 2-3/8” (compatible with Emtek Configuration #4).
  • The Ashland is the only Multipoint Lock certified for our Coastal (DP-50 & Impact) Rated Doors.
  • The Ashland PS8 Passive Lock is available for double doors and required on all Impact Rated Double Door units.
  • Compatible with our three EMTEK® Lever Handle options (see Multipoint Lock Handlesets).
  • Ashland Multipoint Lock is not available for the following DSA Collections: Breezeport, Dutch, Porthole, Meadowlands, Pinehurst (single door), Bifold Doors, and our Wynstellar French Doors.
  • Both the Ashland Active & Passive Locks are recommended for custom DSA doors that exceed 8 feet tall.

GU® Secury™ 3-Point Lock System

  • The GU Secury 3-Point Lock does not require lifting the lever handle to engage the locking points. By simply closing the door, the latches automatically engage for additional security, better weather sealing, & structural integrity to reduce door warpage.
  • Once deadbolt is engaged, the top & bottom latches will be blocked, becoming a triple deadbolt locking system.
  • American Cylinder Above Lever 3-5/8” Center-to-Center. 2-3/8” Backset.
  • The GU 3-Point Lock is the only Multipoint Locking System available for E-01C Doors (Single True-Radius Doors). Custom E-01C units must be at least 8ft tall to be compatible for Multipoint.
  • The GU 3-Point lock is compatible with our three Emtek Lever Handlesets, the Berkley Thumblatch handle, and the Danalock V3 smart lock. (See Multipoint Lock Handlesets and Smart Lock for Multipoint).
  • Active Locking System only. Double Doors will use standard flush bolts for the passive door panel when purchased with the GU 3-Point Lock.
  • Locking system is not available for the following DSA Collections: Dutch, Bifold Doors, and our Wynstellar French Doors. Locking system is also not available for Coastal Rated (DP-50 & Impact) Units.
Rhino-Hook Bolts
Active Door Lock
Passive Lock Shoot Bolts

GU® Europa™ Rhino-Hook Bolt Lock System

  • GU Europa Rhino Lock is included and required on all Bifold Units and French Doors featured in our Wynstellar Collection. Passive Cremona Lock is not compatible with Bifold Doors.
    • Active locking mechanism uses three tempered steel hooks, which lock in an upward direction for maximum security and protection.
    • American Cylinder Below Lever 3 5/8” Center-to-Center (Emtek Config. #1). Backset 1 5/8”.
  • GU Europa Rhino-Hook Bolt Lock with Cremona Passive 2-point Lock is included on all French doors.
    • Cremona Passive Lock uses 2 top & bottom shoot bolts engaged by lifting the passive handle up 45°.
  • Compatible only with GU® Ferco Lever Handlesets.

Multipoint Lock Handlesets

Emtek® Lever Handles

  • Compatible with Ashland and GU Secury Multipoint Locking Systems
  • Active, Passive & Dummy Handles
  • Emtek Configuration #4: American Cylinder Hub Above Handle, 3 5/8” Center-to-Center. 2 3/8″ backset.
  • Available for DP-50 and Impact units.

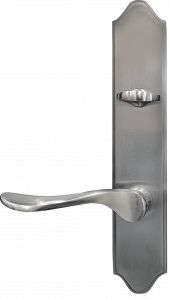

OPTION 1 (Arch Plate) Nickel Handle
OPTION 1 (Arch Plate) Black Handle
Satin Nickel Arched Lever
Flat Black Arched Lever
Satin Nickel Square Lever
Flat Black Square Lever
Satin Nickel Contemporary Lever
Flat Black Contemporary Lever

GU® Ferco Allegro Lever Handles

ALLEGRO HANDLES
  • Only handleset available for the GU Europa & Cremona Multipoint Locks included with our Bifold and Wynstellar French Doors
  • Handleset can be installed with GU Europa Rhinobolt Lock on any non-rated DSA door upon request.
  • All double door units require both the Active & Passive lock with no option of flush bolts.
  • Emtek Configuration #1: American Cylinder Hub Below Handle, 3 5/8” Center-to-Center, 1 5/8” Backset
  • 1 3/16” X 9” Brass Trim
  • Satin Nickel and Black finishes
  • No Dummy Handles (Active & Passive only)
  • Available for DP-50 Bifold units.

GU® 3-Point Lock with Berkley Thumblatch Handle

  • Interior lever or knob available.
  • Berkley handleset is sold with GU 3-Point Lock and is not sold separately.
  • The GU lock mechanism paired with the Berkley is made specifically for the thumblatch engagement.
  • The handleset is not compatible with any other multipoint lock and can not be installed on a existing slab prepped for the lever compatible GU lock or Ashland Multipoint.
  • Active & Dummy Handle available
  • Berkley Thumblatch with an Interior Knob is the only available handle option for using a Multipoint Lock on our Breezeport Doors.
  • Not available for Coastal Rated units (DP-50 & Impact)
  • Solid Brass Lever & Trim, 3 1/8” X 18 1/4”
Satin Nickel Interior Lever
Black Interior Lever
Satin Nickel Interior Knob
Black Interior Knob

Smart Lock for Multipoint

Danalock V3 Smart Lock System for GU Secury 3-Point Lock
  • Includes Danalock V3 and Danabridge V3
  • Automatic Lock & Unlock for hassle-free entry
  • Grant access remotely to friends and family with Unlimited Digital Keys
  • Enjoy the convenience of Twist Assist – a motorized function that does most of the work for you
  • Remotely Control & Connect to your Danalock with your smartphone via the Danalock App
Danalock V3
  • Motorized Interior Thumbturn locks & unlocks your deadbolt for you
  • Communication: Bluetooth 4.2, Z-Wave, Zigbee, Apple Homekit
  • Batteries: 4 CR123A batteries
  • Materials: ABS & Anodized Aluminum
  • Finishes: Satin Nickel & Black
Danabridge V3
  • Wifi Bridge that allows you to control your lock when you are away from home
  • Communication: Bluetooth 4.2 and WiFi 802.11 b/g/n
  • Power: USB Power Supply. Includes USB cable & outlet adapter
  • Color: White
  • Number of Danalocks: 2

Danapad V3

Optional Wireless Keypad for Danalock V3

  • Pin Code Length: 4-10 digits
  • Pin Code Memory: 20 different pin codes
  • Communication: Bluetooth 4.2
  • Power: 4 AAA batteries Finishes: Satin Nickel & Black
  • Mounting: 2 screws or adhesive tape
  • Mount on exterior wall or surface within Bluetooth range of your Danalock V3.
Danalock V3
Danapad V3
danabridge-6-__
Danabridge V3

Belcanto Lever

with GU® Secury™ 3-Point Lock and Danalock V3

Set includes:
  • Belcanto Lever-to-Lever Handle with Deadbolt (Schlage C keyway)
  • Danalock V3 Smart Lock
  • Danabridge V3
  • GU Secury 3-Point Lock Locking Mechanism
Satin Nickel & Black
Stainless Steel Lever and Deadbolt
interior dana belcanto

Interior View

Berkley Thumblatch

with GU® Secury™ 3-Point Lock and Danalock V3

Set includes:
  • Berkley Gripset (Interior Knob or Lever)
  • Danalock V3 Smart Lock
  • Danabridge V3
  • GU Secury 3-Point Lock
Satin Nickel & Black
Solid Brass Trim Brass Interior Lever or Square Knob

Non-Multipoint Handlesets

Multipoint locks are recommended for doors 8’0″ and taller, to provide additional stability to your door and additional security to your home.

EMTEK® Thumblatch Entry Sets

  • Square or Full Plate with Square Lever or Round Knob interior handle available.
  • 2 3/8” or 2 3/4” backset available.
  • Dummy handle is not stocked or currently available.
  • Available for DP-50 doors.
Baden Matte Black
  • Square Entry Set
  • Brass Tubular Entry
  • Round Knob or Square Lever interior handle
Baden Satin Nickel
  • Square Entry Set
  • Brass Tubular Entry
  • Round Knob or Square Lever interior handle
Orion Matte Black
  • Full Plate Entry Set
  • Brass Tubular Entry
  • Round Knob or Square Lever interior handle
Orion Satin Nickel
  • Full Plate Entry Set
  • Brass Tubular Entry
  • Round Knob or Square Lever interior handle

EMTEK® Mortised Pocket Lock

Artemis Single Cylinder Mortise Lock

pocket lock
  • Satin Nickel and Oil Rubbed Bronze
  • Brass Knob-By-Knob Mortise Lock
  • EMTEK Bern Knob, Artemis Mortise
  • Features Forged Deadbolt with Anti-Saw Inserts, Anti-Pick Security latch, Anti-Friction Trigger, Stop & Release Buttons for automatic locking of the exterior knob
  • 2 3/4” Backset available only.
  • Dummy handleset not in stock, but can be ordered upon special request.
  • Not available for DP-50 Rated units.

EMTEK® Smart Lock Upgrade

EMPowered™ Smart Lock Deadbolt

  • Pre-Installed Module: Allows your smart lock to communicate with the Yale Acces app
  • Connect Wi-Fi Bridge: A secure way to remotely access your lock.
  • 2-3/8” or 2-3/4” backset available.
  • Dummy handle is not stocked or currently available.
  • Available for DP-50 doors.
smart lock 1

Auto-Unlock

The lock will unlock as you approach with your phone on you
smart lock 3

Smart Control

Use your smart phone to control and access your lock from anywhere
smart lock 5

Share Access

Create entry codes and virtual keys to share with people you trust
smart lock 2
Auto-Lock
When enbaled, your door will always lock behind you
smart lock 4
DoorSense™
Includes option DoorSense sensor that tells you if your doors is securely closed
smart lock 6
Voice Commands
Lock, unlock, and check status using Amazon Alexa, Google Assistant or Siri

EMTEK® Smart Lock Entry Sets

Square Entry Handle (Keyed)
  • Satin Nickel
  • Brass Tubular Entry
  • Interior Handle
  • Round Knob or Square Lever
Square Entry Handle (Keyed)
  • Matte Black
  • Brass Tubular Entry
  • Interior Handle
  • Round Knob or Square Lever

Square Entry Handle (Digital Keypad)

  • Satin Nickel
  • Brass Tubular Entry
  • Interior Handle
  • Round Knob or Square Lever

Square Entry Handle (Digital Keypad)

  • Matte Black
  • Brass Tubular Entry
  • Interior Handle
  • Round Knob or Square Lever

Full Plate Entry Handle (Keyed)

  • Satin Nickel
  • Brass Tubular Entry
  • Interior Handle
  • Round Knob or Square Lever

Full Plate Entry Handle (Keyed)

  • Matte Black
  • Brass Tubular Entry
  • Interior Handle
  • Round Knob or Square Lever

Modern Hardware Options

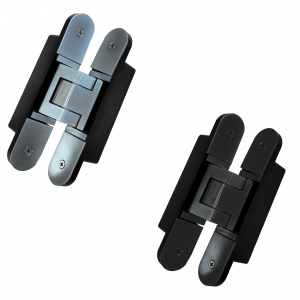

Concealed Hinges

  • Stainless Steel Mortised Hinges
  • Satin Nickel or Black
  • Includes 3 hinges per slab for 6’8″ & 8’0″ door heights
  • Available for any non-rated hung DSA Door
conceal hinges
CONCEALED HINGES (NEW 2022)

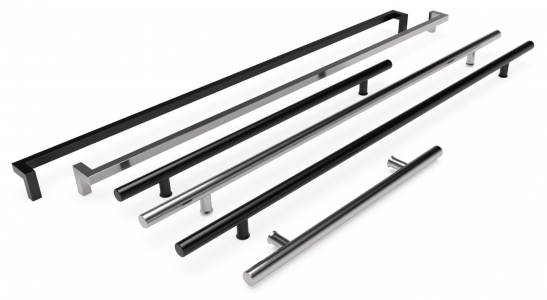

Modern Door Pulls

Pull Bars_allsizes
Compatible door styles include: Carlo Horizontal 8/7LT, Carlo 7/6LT, Flores Diamond 3LT, Flores 4LT Square, Luca Square 3LT, Luca Horizontal 4LT (not 71”), Milan Solid Panel, MIlan Thin Lite, MIlan Wide Lite, Milan San Donato, Modena 4LT, and Modena 5LT

Round & Square Offset Pull Bars

  • Does not include locking mechanism
  • Round 32” Pull Bar in Satin Nickel or Black
  • Round 48” Pull Bar in Satin Nickel or Black
  • Round 71” Pull Bar in Satin Nickel or Black
  • Offset Square 71” Pull Bar in Satin Nickel or Black
  • Standard orders include one exterior & interior pull bar

Modern Lock Options for Door Pulls

Square Deadbolt & Roller Catch

  • Satin Nickel or Matte Black Square Deadbolt and 8801 EMTEK Roller Catch
  • Includes roller catch, bore prep, and deadbolt lock.
  • A single 8801 Roller Catch is mortised into the top latch-side of the active slab to keep the door securely in the frame when closed.
  • Custom placement of roller catches, such as along the strike side of the slab, is available upon special request. Additional charges will apply.
  • Roller catch & single deadbolt bore prep also available.
rollercatch_SN
rollercatch_black

EMPowered™ Smart Lock Deadbolt & Roller Catch

  • A single 8801 Roller Catch is mortised into the top latch-side of the active slab to keep the door securely in the frame when closed.
  • Custom placement of roller catches, such as along the strike side of the slab, is available upon special request. Additional charges will apply.
Satin Nickel Keyed EMPowered™ Smart Lock Deadbolt with 8801 EMTEK Roller Catch
Matte Black Keyed EMPowered™ Smart Lock Deadbolt with 8801 EMTEK Roller Catch
Satin Nickel Digital Keypad EMPowered™ Smart Lock Deadbolt with 8801 EMTEK Roller Catch

Matte Black Digital Keypad EMPowered™ Smart Lock Deadbolt with 8801 EMTEK Roller Catch

Multipoint Lock for Door Pulls

GU® Secury™ 3-Point Lock with European Profile Cylinder

  • Automatic latch requires key for exterior entry.
  • Includes GU Euro Profile Cylinder in Satin Nickel or Black, GU Cylinder Rosette in Satin Nickel or Black / Round or Square, and Multipoint Lock
  • Not available for DP-50 Rated doors.
european cylinder Screen Shot 2022-09-15 at 11.04.39 AM
Black and Round Rosette
